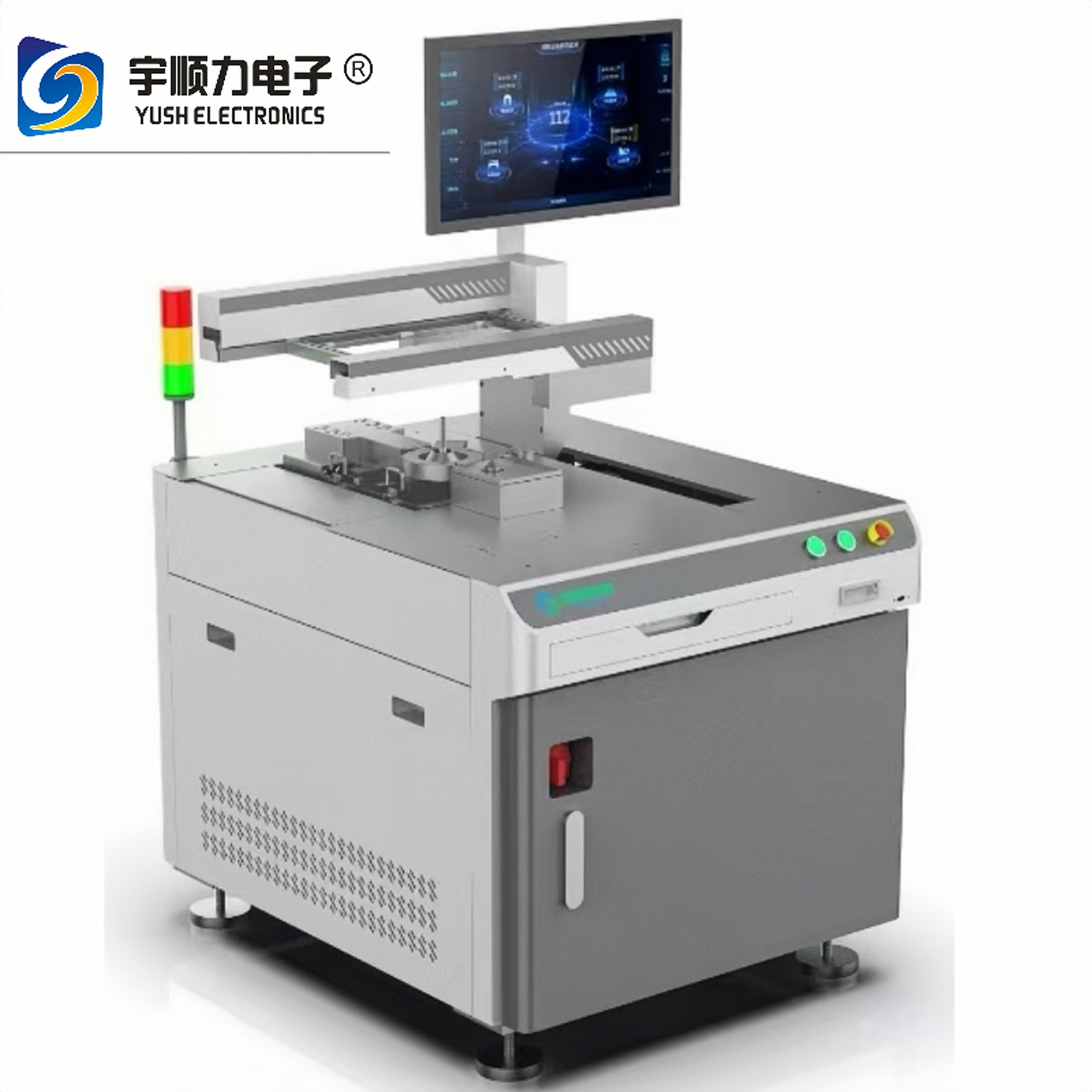

High Quality Integrated selective wave soldering YS-320Y/ YS-320YT

Product Details:

Specification items：YS-320Y/ YS-320YT
Applicable PCB board size：L*W : 50×50～320×250 mm
Applicable PCB board thickness：Substrate thickness：0.8～3 mm / Pin length：within 3mm
Total power：AC 220V 3.5KW
Flux capacity：2 L
Gas source：0.5-0.7Mpa

Detailed Product Description

High Quality Integrated selective wave soldering YS-320Y/ YS-320YT

Discription:

Specification items	YS-320Y/ YS-320YT
Applicable PCB board size	L*W : 50×50～320×250 mm
Applicable PCB board thickness	Substrate thickness：0.8～3 mm / Pin length：3mm 以内
Component height	Less than 100mm above the substrate / Less than 50mm below the substrate
Substrate shape and conditions	1. Substrate placement edge: more than 3mm from the substrate process edge. \ n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm
Tin furnace	Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW
Preheating power	Infrared preheating 1KW
Total power	AC 220V 3.5KW
N2 Requirements	Nitrogen purity：99.999% Pressure/Consumption：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters
Flux nozzle	0.5mm precision fluid nozzle imported from Japan
Flux capacity	2 L
Gas source	0.5-0.7Mpa
Nozzle inner diameter	φ 3mm~φ 20mm Customizable size
Peak height	Automatic alignment/height measurement
System control	PC+PLC（windows+Huichuan）
Programming software	Support programming for online or offline image production
Video surveillance	Real-time video monitoring makes it convenient to watch the welding effect
Power supply/power	Single-phase 220V±10 Starting power：3.5KW
Weight	120KG （Containing solder12KG）
YS-320YExternal dimensions	LWH 910×980×1350 mm （With a display）
YS-320YTExternal dimensions	LWH 910×980×1500 mm （Including the upper cover）

Solve the difficulties in DIP welding

Solve the flexible production of multiple varieties and small batches (flexible and convenient)
Quick online welding, no fixtures required (direct welding can be done with a safe distance)
Extremely low equipment purchase cost (low initial investment cost)
Extremely low usage and maintenance costs (saving tin slag, flux, electricity and consumables)
The tin penetration rate is 100% and the welding yield rate is over 98%
The tin penetration rate is 100% and the welding yield rate is over 98%

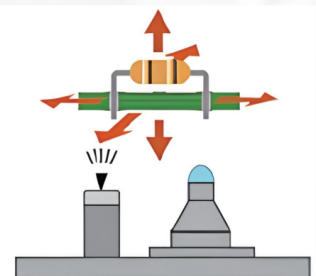

Selective wave soldering working mode

During offline selective welding,

The welding nozzle is fixed.

The PCB board is set

Move in the X,Y, and Z axes to achieve

the soldering of PCB solder joints.

Comparison of online and offine selection welding

Project

Online selective wave soldering

Offline selective welding machine

Production scope

Small batch/multiple models The welding quality requirements are high

Small batch/multiple modelsThe welding quality requirements are high

Applicable to the needs of different customers

Personnel cost

Two person

One person for installing fixtures and inspecting components

One person is responsible for confirming the welding and removing the fixtures after the plates are taken out

Two person

One person for installing fixtures and inspecting components

One person for loading and unloading the board and disassembling the fixture

The personnel required for online and offline are the same

Welding efficiency

Depending on the product, it takes 1.5 to 2.5 seconds for single-cylinder or double-cylinder

Depending on the product, the welding efficiency can be improved in a 1+N manner within 1.5 to 2.5 seconds, with 1 spray followed by 1 or 2, 3 welds

The off-line type can be used for those with many solder joints

PCB board, can be soldered in 1+N mode

The connection efficiency is higher than that of the online machine

Equipment cost

High input cost

Low input cost and strong flexibility

The input cost of the offline type has a significant advantage potential
