High Quality Integrated selective wave soldering YS-450Y / YS-450YT

Product Details:

Specification items：YS-450Y / YS-450YT
Applicable PCB board size：L*W : 50×50～450×400 mm
Applicable PCB board thickness：Substrate thickness：0.8～3 mm / Pin length：Within 3mm
Total power：AC 220V 3.5KW
Flux capacity：2 L
Gas source：0.5-0.7Mpa

Detailed Product Description

High Quality Integrated selective wave soldering YS-450Y / YS-450YT

Discription:

Specification items	YS-450Y / YS-450YT
Applicable PCB board size	L*W : 50×50～450×400 mm
Applicable PCB board thickness	Substrate thickness：0.8～3 mm / Pin length：Within 3mm
Component height	Less than 100mm above the substrate / Less than 50mm below the substrate
Substrate shape and conditions	1.Substrate placement edge: more than 3mm from the substrate process edge 2.The weight including components is less than 5 kilograms 3.The bending of the substrate: less than 0.5mm
Tin furnace	Tin furnace material/capacity：All-titanium alloy material/15KG Tin bath capacity：Power：4*500W2KW
Preheating power	Infrared preheating 1KW
Total wer	AC 220V 3.5KW
N2 Requirements	Nitrogen purity：99.999% Pressure/Consumption：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters
Flux nozzle	0.5mm Precision fluid nozzles imported from Japan
Flux capacity	2 L
Gas source	0.5-0.7Mpa
Nozzle inner diameter	φ 3mm~φ 20mm Customizable size
Peak height	Automatic alignment/height measurement
System control	PC+PLC（windows+汇川）
Programming software	Support programming for picture line drawing (convenient and fast)
Video surveillance	Real-time video monitoring makes it convenient to watch the welding effect
Power supply/power	Single-phase 220V±10% Starting power：3.5KW
Weight	150KG （Containing solder12KG）
External dimensionsSW-450Y	LWH 940×1280×1350 mm （With a display）
External dimensionsSW-450YT	LWH 1110×1280×1500 mm （It does not include three-color lights）

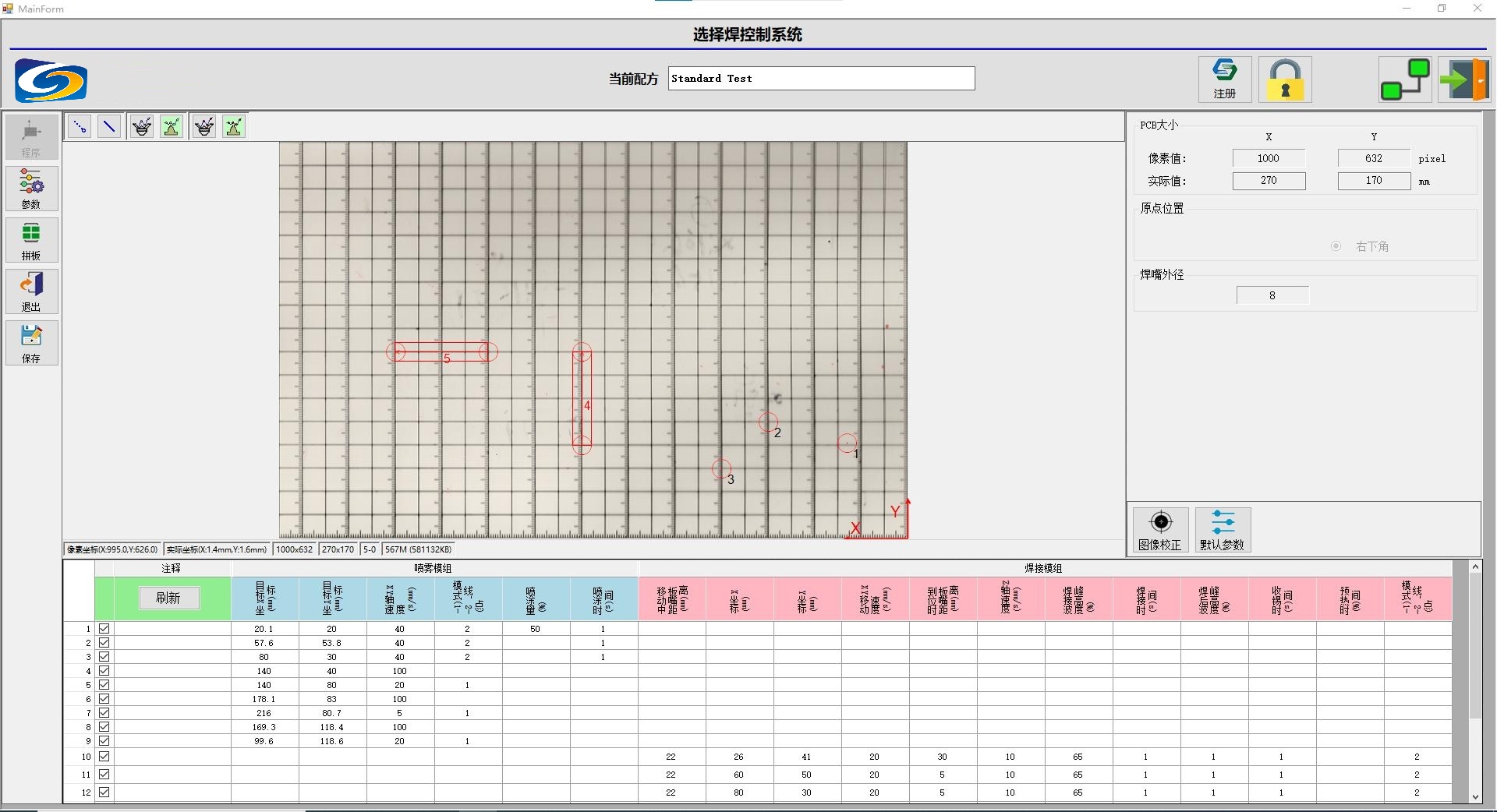

Program programming

It is intuitive, convenient and fast to import PCB board pictures for programming.

It can be programmed offline on an office computer and then imported into the device for use,

quickly integrating into production

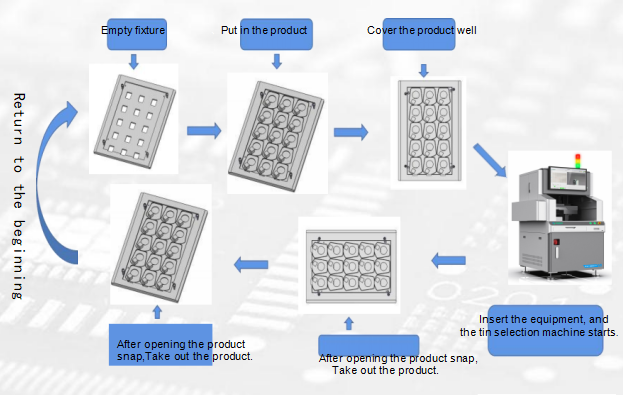

Operation process

Comparison of conventional production equipment

	Project	Ordinary wave soldering	Soldering iron robot	Selective welding machine

1	Production application scope	Mass production/conventional process	Small-batch welding/simple process	Small batch/multiple models The welding quality requirements are high
2	Multilayer circuit board Through-hole tin permeability	50%	80%	99.99%
3	Tin bath capacity	400-500kg	Soldering wire	12KG
4	The amount of solder slag produced in 8 hours	5～8 KG	0.5 KG	0.2 KG
5	Flux residue
6	Power consumption of working power supply	12 KW	1 KW	1 KW
