    High Quality Desktop selective wave soldering YS-E320 For SMT Production LIine
    Product Details:
    • Specification items:YS-E320
    • Applicable PCB board size:L*W : 50×50~450×400 mm
    • Applicable PCB board thickness:Substrate thickness:0.8~3 mm / Pin length:Within 3mm
    • Flux nozzle:Precision fluid nozzle
    • Flux capacity:2 L (Manual liquid addition)
    • Gas source:0.5-0.7Mpa
    Detailed Product Description


    High Quality Desktop selective wave soldering YS-E320 For SMT Production LIine

    Discription:

    Specification items

    YS-E320

    Applicable PCB board size

    L*W :  50×50~450×400   mm

    Applicable PCB board thickness

    Substrate thickness:0.8~3 mm   /  Pin length:Within 3mm

    Component height

    Less than 100mm above the substrate /  Less than 50mm below the substrate



    Substrate shape and conditions

    1.Substrate placement edge:The edge of the substrate process is more than 3mm

    2The weight including components is less than 5 kilograms

    3.The bending of the substrate: less than 0.5mm

    Tin furnace

    Tin furnace material/capacity:Stainless steel material / 10KG tin tank capacity:Power:4*500W   2 KW

    N2 Requirements

    Nitrogen purity:99.999%

    Pressure/Consumption:0.5MPa   / 20ℓ/min~30ℓ/min /

    1.2-1.5Cube H

    Flux nozzle

    Precisi

    n fluid nozzle

    Flux capacity

    2 L  (Manual liquid addition)

    Gas source

    0.5-0.7Mpa

    Nozzle inner diameter

    φ 3mm~φ 20mm Customizable size

    Peak height

    Automatic alignment/height measurement

    System control

    PC+PLC(windows+Huichuan)

    Programming software

    Support programming for drawing lines on pictures(Convenient and fast)

    Power supply/power

    Single-phase 220V±10%    Starting power:2.5KW

    Weight

    70KG  (Containing solder10KG)

    External dimensions

    L*W*H  730×800×840 mm

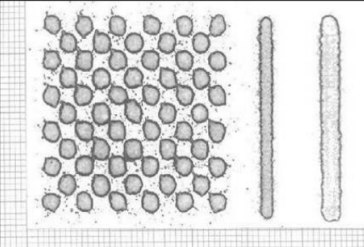

    Selective spraying


    Fogging effect (shot in strong light)      Linear spray (optional)


    Original 0.5mm "Lumina" imported from Japan

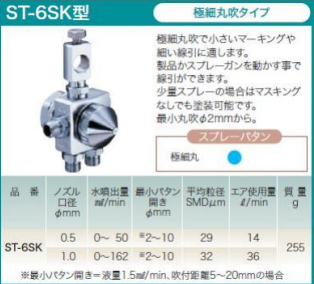

    Precision fluid nozzle

    Selective spraying


    Advantage

    • Sealed system - no evaporation

    • It can maintain the original packaging performance of the flux

    • The dosage is controllable and repeatable

    • The dosage is very low. Strong process reliability

    • No solvent needs to be added The flux was fully utilized and there was no waste

    Preheat the top of the PCB board


    Preheat the top of the PCB board(Optional)

    A 1KW infrared heating tube is adopted to preheat the PCB board before soldering,

    which meets the high temperature requirements of special components, reduces the thermal

    shock of components, activates the activity of flux, improves the tin penetration

    of component pins, and enhances the soldering quality

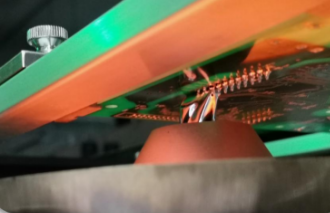

    Preheat the bottom of the PCB board

    w.png       o.png

    Preheating the bottom of the PCB board

    Taking advantage of the fast heat conduction speed of infrared rays, the PCB board is preheated before soldering and maintained

     at the set frequency during soldering to prevent temperature drop of the PCB board during soldering.

    It belongs to the design principle of "preheating + soldering" carried out simultaneously, which  improves the soldering efficiency and the tin penetration

     rate of components, and reduces the thermal shock caused by the sudden heat of heat-sensitive components. The cleanliness ratio of the PCB board after soldering is relatively high.

    Consumables - nozzles


    The nozzle can be selected according to the size of the weld point

    The solder penetration rate and soldering time of each solder joint can be controlled


    The nozzle size is as follows*

    Outer diameter 4 6,  8,  10,  12,  14mm, + Special customization

    The nozzle size is made in increments of 2mm by  default,

    but nozzles and special-shaped nozzles can be customized

    according to actual needs.

    If you need any other sizes, please contact Xinrui

    *The nozzle size is derived from the diameter of the nozzle's external contour
