High Quality Split selective wave soldering machine YS-320S For SMT Production LIine

Product Details:

Specification items：Split selective wave soldering SW-320S
Applicable PCB board size：L*W : 50×50～320×250 mm
Applicable PCB board thickness：Substrate thickness：0.8～3 mm / Pin length：Within 3mm
Total power：AC 220V 3.5KW
Peak height：Automatic alignment/automatic height measurement
System control：PC+PLC（windows+Siemens）
Programming software：Support offline image production programming

Detailed Product Description

High Quality Split selective wave soldering machine YS-320S For SMT Production LIine

Discription:

Specification items	Split selective wave soldering SW-320S
Applicable PCB board size	L*W : 50×50～320×250 mm
Applicable PCB board thickness	Substrate thickness：0.8～3 mm / Pin length：Within 3mm
Component height	On the substrate Less than 100mm / Less than 30mm below the substrate
Substrate shape and condition	1.Substrate placement edge：The edge of the substrate process is more than 3mm 2.The weight including components is less than 5 kilograms 3.The bending of the substrate: less than 0.5mm
Tin furnace	Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW
Preheating power	Infrared preheating 1KW
Total power	AC 220V 3.5KW
N2 Requirements	Nitrogen purity：99.999% Pressure/Consumption ：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters
Nozzle inner diameter	φ 3mm~φ 20mm Customizable size
Peak height	Automatic alignment/automatic height measurement
System control	PC+PLC（windows+Siemens）
Programming software	Support offline image production programming
Power supply/power	Single-phase 220V±10 Starting power：3.5KW
Weight	100KG （Containing solder12KG）
External dimensions	LWH 750×820×1350 mm （It does not include three-color lights）

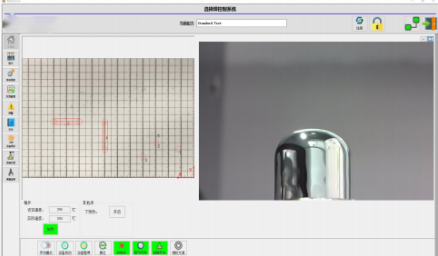

Automatic detection of peak height

Automatic detection of wave peak height ensures the stability Real-time video monitoring of wave peaks and welding status

if wave peaks and improves the welding yield.

List of Key components

Serial number	Name	Brand	Remarks
1	Tin furnace	Titanium alloy
2	PLC	Huichuan
3	Temperature control	Yamabu, Japan
4	Thyristor	Swiss Jiale, Taiwan Yangming
5	Spray	Lumina, Japan
6	Pneumatic component	SMC of Japan and Aideke of Taiwan
7	Lead screw, track	TaiwanPMI
8	Wave Peak Motor	200-degree customized high-temperature motor	It operates at a constant temperature of 200 degrees for a long time
9	Air switch	Schneider
10	Relay	Songchuan, Taiwan
11	Button	APT Siemens
12	Power supply	Mingwei, Taiwan
13	Computer	Industrial control computer
14	Display	AOC

Comparison of usage costs

Comparison of the usage costs between traditional wave soldering and selective wave soldering
Labor cost (Yuan	Machine	Monthly salary	Number of people	Shift	Straight-through rate	Annual total cost	Labor cost savings
	Wave soldering	5000	4	1	65%	240000
	Choose welding	5000	1	1	98%	60000	18万

Cost of tin materialSAC 305		Unit price: yuan /KG	The amount of tin slag per 8 hours in kilograms	Monthly tin slag quantity in kilograms	Annual tin slag quantity in kilograms	Annual tin slag quantity cost	Annual savings (yuan)
	Wave soldering	560	4	104	1248	139776	At a 20% loss rate
	Choose welding	560	0.1	2.6	31.2	3494	13.6万

Flux ready this		Unit price (yuan /L)	Flux dosage for 8 hours per day (L)	Monthly flux quantity (L)	Annual flux quantity (L)	Annual flux cost (yuan)	Annual savings (yuan)
	Wave soldering	20	10	260	3120	62400
	Choose welding	20	1	26	260	5200	5.72万

Electricity consumption cost		Unit price (yuan/degree)	Electricity consumption for 8 hours a day (kilowatt-hours)	Monthly electricity consumption (Degree	Annual electricity consumption (kilowatt-hours)	Annual electricity cost (yuan)	Annual savings (yuan)
	Wave soldering	1.2	120	3120	37440	44928
	Choose welding	1.2	10	260	3120	3744	4. 1万
