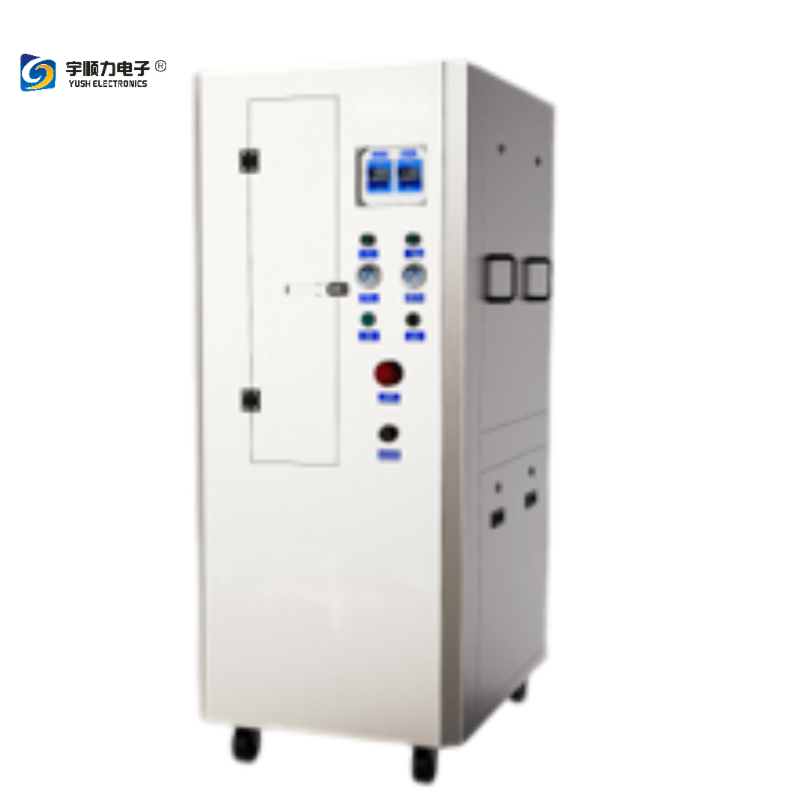

Full pneumatic steel mesh cleaning machine YSL-600 L1000*W700*H1730（ mm ）

Product Details:

Drying time：2-5min
Cleaning time：2-4min
Cleaning mode：360° Rotary double isobaric injection High pressure injection (wash + blow dry)
Optimal liquid usage：40L
Maximum volume of liquid tank：50L
Overall dimension：L1000*W700*H1730（ mm ）
Applicable steel mesh size：L750 × W750 × H40(mm) 【 Extra large size to order】

Detailed Product Description

Full pneumatic steel mesh cleaning machine YSL-600 L1000*W700*H1730（ mm ）

Technical specification parameter

Applicable steel mesh size	L750 × W750 × H40(mm) 【 Extra large size to order】
Overall dimension	L1000W700H1730（ mm ）
Maximum volume of liquid tank	50L
Optimal liquid usage	40L
Cleaning mode	360° Rotary double isobaric injection High pressure injection (wash + blow dry)
Cleaning time	2-4min
Drying time	2-5min
External air source	0.4～ 0.6 (Mpa)
Air consumption	400 ～600( L/Min)
Exhaust port size	Φ 125× H25(mm)
Filtration system (first level)	Primary filter element filtration：10㎛ (Filter impurities and labels)
Filtration system (secondary)	Two-stage filter element filtration：5㎛ (Filter solder paste and rosin particles)
Filtration system (three stages)	Three-stage filter element filtration：1㎛ (Filter solder paste and rosin particles)
Machine weight	240KG

Product characteristics

All stainless steel body: beautiful, wear resistance, corrosion resistance, in line with environmental requirements and standards;
Full pneumatic operation, no electricity, no fire and other safety risks;
Side wall air intake blow-drying design;
User-friendly design: one-button operation and automatic filling and draining function, easy to operate;
Replaceable modular controller and quick-plug design make maintenance easy and convenient.
Two-stage filtration system, low exhaust and S-shaped exhaust duct design: solvent
recycling, low liquid consumption; Ø High density isobaric double rotating cleaning nozzle, strong cleaning power, does not damage the tension of steel mesh.
Systematic integration of global quality control devices to ensure excellent quality, stable performance and long service life;

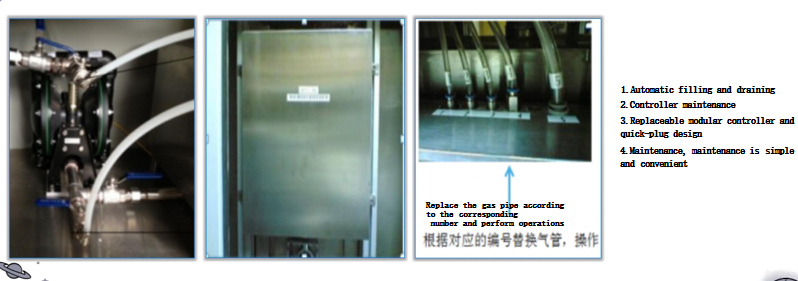

Maintenance and maintenance

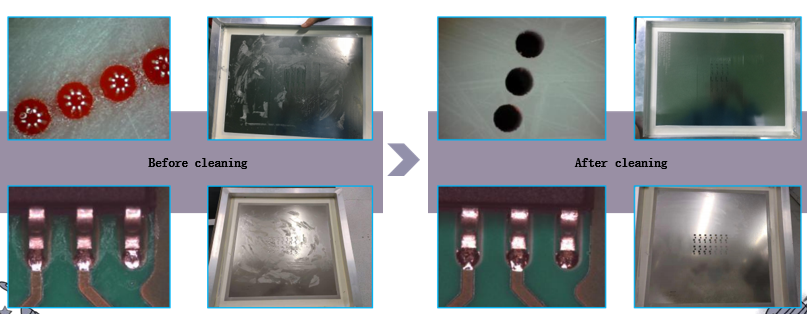

Comparison of cleaning cases
